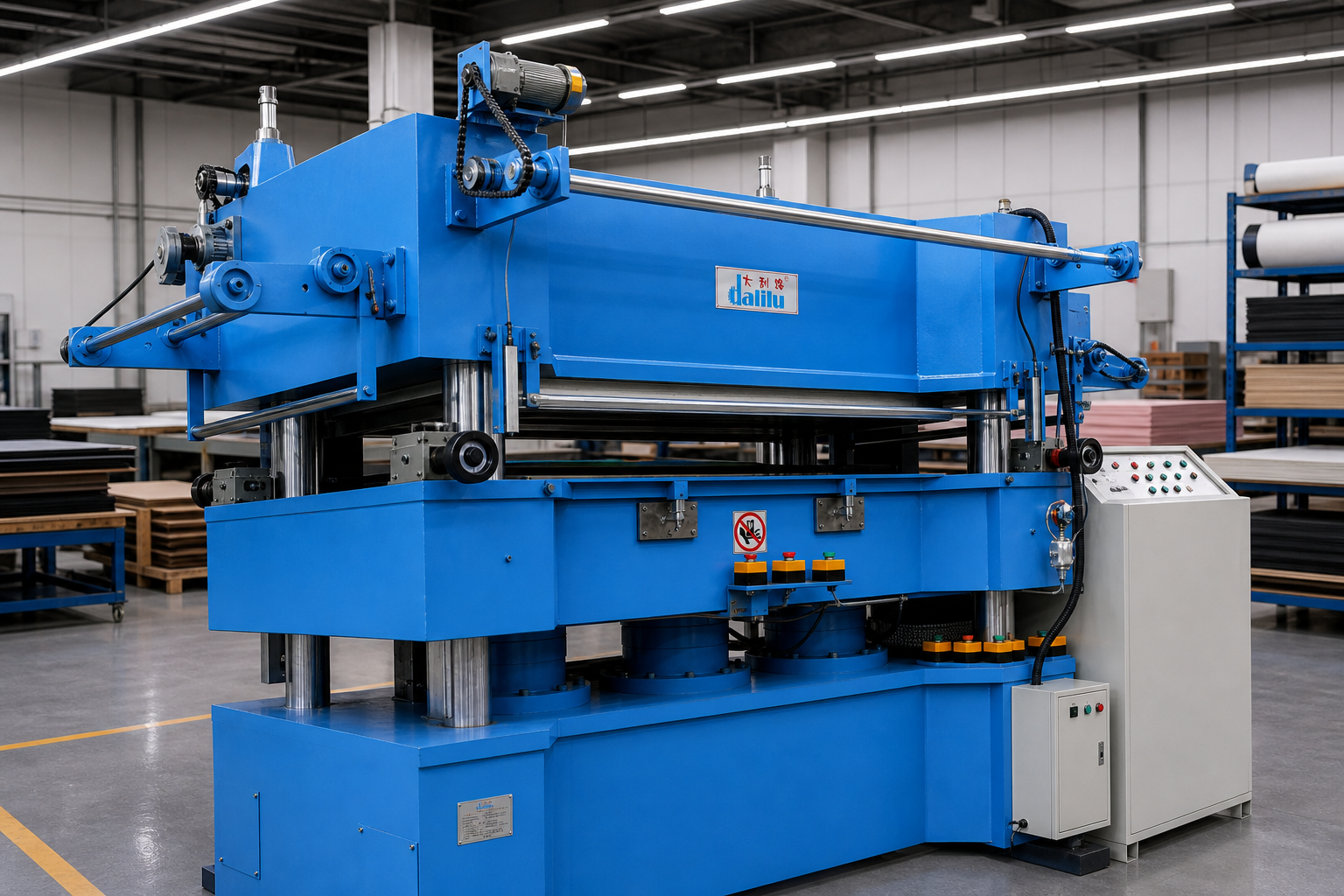

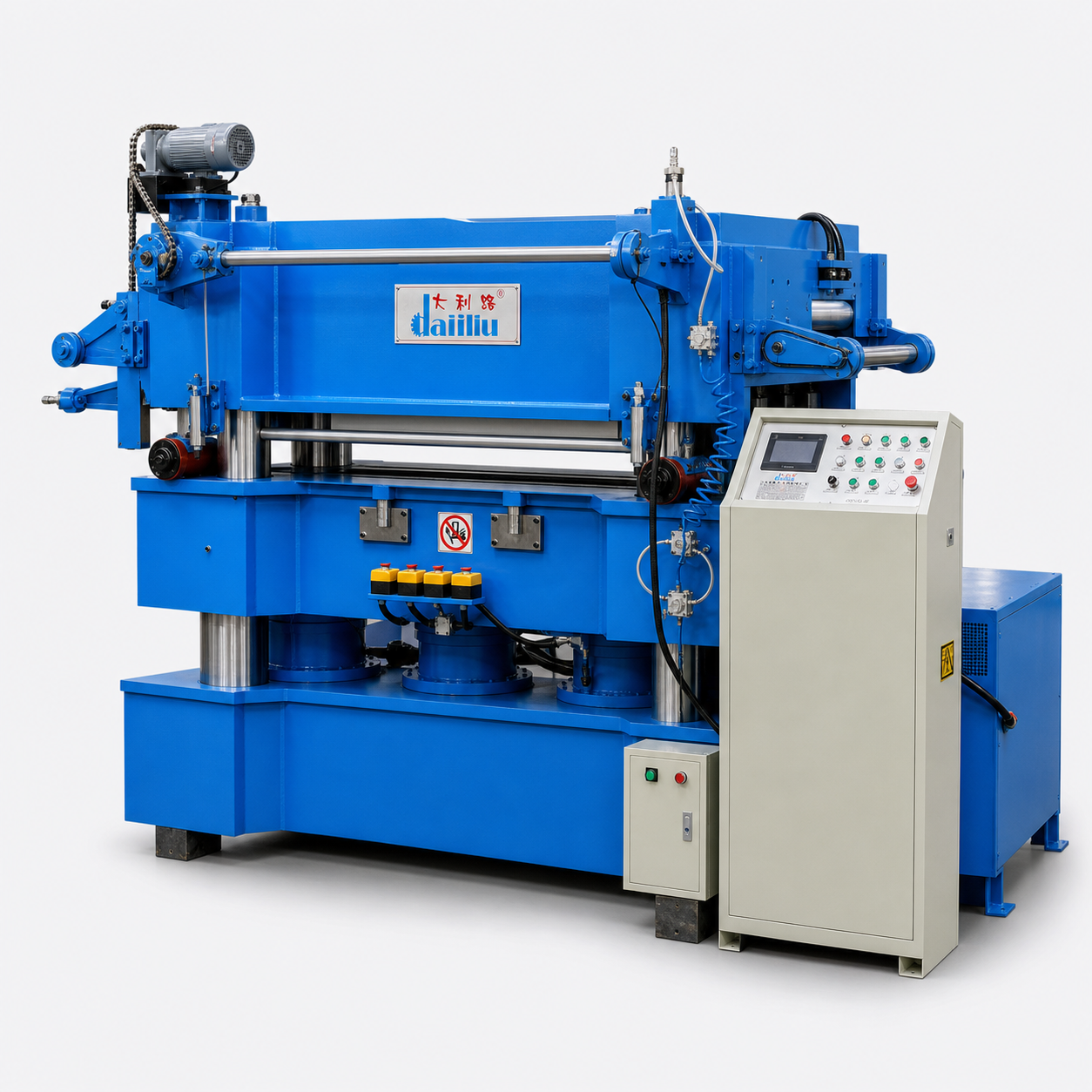

CNC Automatic Unilateral Feed Roller Hydraulic Stamping Machine

MAIN FEATURES

Microcomputer controlsystem, touch screen, set the cutting pressure,height,stroke are both digitalelectronic control device implantation of high-endtechnology sensor signal control), greatly improve the pressurestability, precision equipment: loading /O (input/output) monitoring function,convenientmaintenance, simple and quick operation.

From lower to upper press, according to the length of materialselection.longitudina, transverse mode of operation, dislocationreceiving set length.greatly
reduce the material waste.

It is driven by the servo motor feeding plate fixed length to productautomaticallyinto / exit (reciprocating) press area,feeding repeatability precision is less than or equal to 0.1mm, servomotor and roller type material receiving, precision accuracy,stableperformance. Can be set freelybronzing length

The overall pressure hot region, the dynamic pressure hot high repeat accuracy,ad hoc with precision fine-tuning device, andprotect mold role; the equipmentrunning voice: less than or equalto 60 db.

Before and after the installation of safety grating, workbenchprotection device, the CE security standard, very safe.

External fuel tank, installation of cooling device, heat fully, cuttingpressure stability, make the machine more durable.

The temperature control system, liquid crystal digital, digital temperature is fastand simple; constant temperature control, temperature stability.

This machine is suitable for small and medium-sized paper hot stamping,especiallyadapt to hot stamping and Spring Festival couplets, also adapt toplastic, leather, clothand so on, bronzing, die-cutting indentation operation.

Scope of Application

This machine is suitable for hot stamping of small and medium-sized paper sheets. It is especially ideal for hot stamping New Year scrolls, and can also perform indentation, gold foil stamping, die-cutting and other operations on plastics, leather, coated fabrics and other materials.

Buyer notes

Share your material, cutting die size, layer thickness, daily output target and local voltage. Our team will recommend the suitable cutting force, working table size and feeding configuration.
