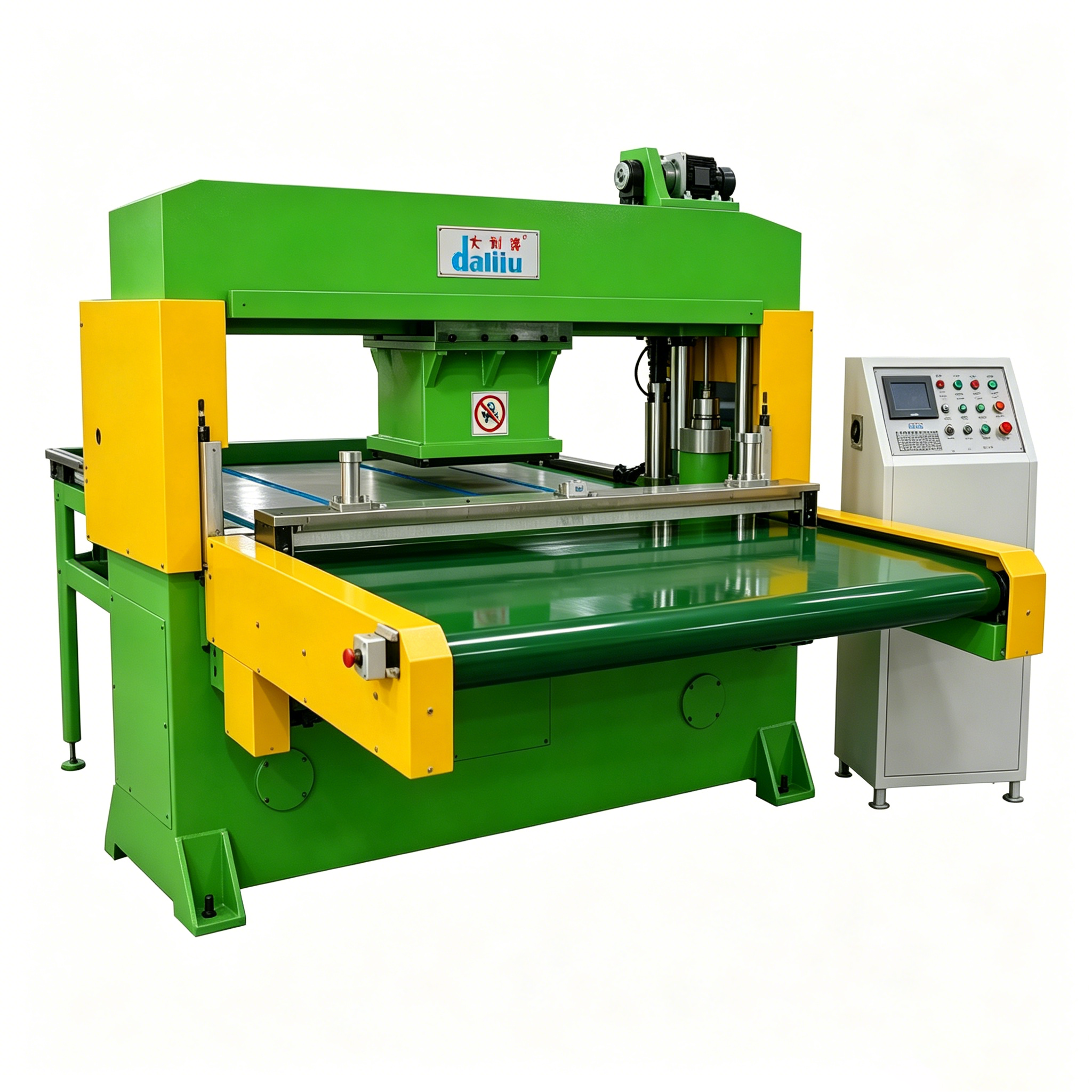

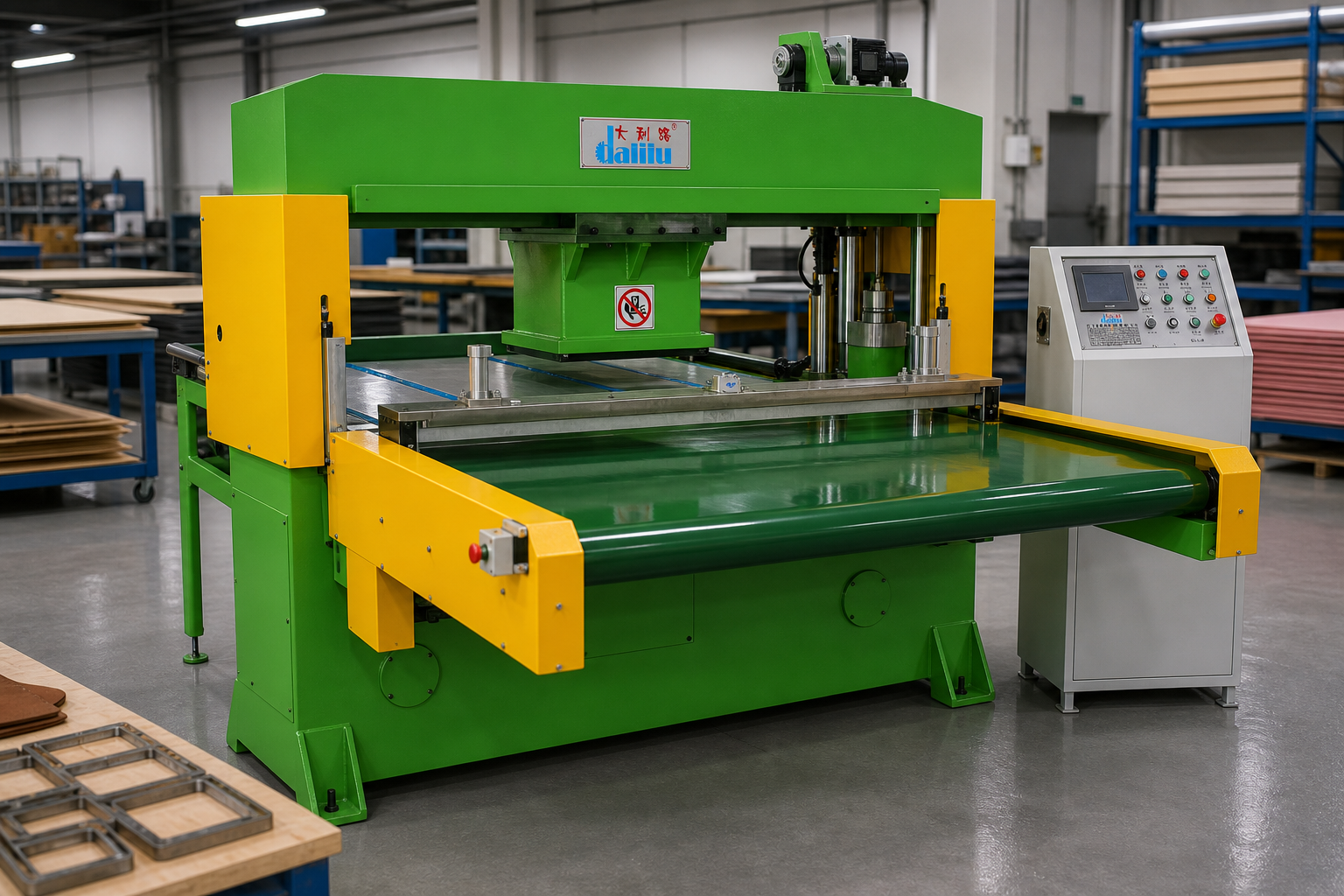

CNC Gantry Automatic Hydraulic Cutting Machine

DLC-3A Series

MAIN FEATURES

Microcomputer control system, touch screen, set the cutting pressure,height,stroke are both digitalelectronic control device implantation of high-endtechnology(sensor signal contro), greatly improve the pressurestability. precisionequipment: loading / (input/output) monitoring function, convenientmaintenance, simple and quick operation.

Double oil cylinde, hydraulic system, precise four column, on both sides ofthe ad hoc machine balance adjustment device,ensuring that every pointby finding thesame force.

Servo motor contro, mobile head transverse moving axes and the feedshaf, make the machine automaticaly complete the cutting action of thematerial，and move the head displacement distance and feeding length set

The machine has the dislocation, dislocation, reduction of knifegrade work mode, reduce the amount of material loss

pre receiving belt, convenient artificial picking.

Before and after the installation of safety grating, workbenchprotection device, CE safety standards, very safe.

Scope of Application

This machine adopts forming cutting dies to perform continuous blanking operations on large-batch non-metallic coiled materials of identical specifications, and is widely used in industries such as football, volleyball, tennis ball, facial mask, sandpaper, shoemaking and grinding wheel mesh production.

Buyer notes

Share your material, cutting die size, layer thickness, daily output target and local voltage. Our team will recommend the suitable cutting force, working table size and feeding configuration.
